Product Description

The Neware CT-4008Q-5V12A-S1 is a versatile and high-performance battery testing solution tailored for cylindrical battery applications. Designed for precision and reliability, this device supports a wide range of testing scenarios in research, development, and production environments.

Key Specifications and Features:

1. Voltage and Current Range

   • Voltage Range: 0-5V, suitable for most cylindrical battery types.
   • Current Range: 0-12A, offering flexibility for various testing demands.
   • Voltage Accuracy: ±0.05% FS (Full Scale).
   • Current Accuracy: ±0.05% FS, ensuring consistent and precise measurements.

2. Multi-Channel Capability

   • 8 independent channels, each configurable with unique parameters.
   • Parallel connection supported for higher current output.

3. Advanced Testing Modes

   • Constant Current (CC), Constant Voltage (CV), Constant Power (CP), and Constant Resistance (CR) modes.
   • Pulse testing and DCIR measurement capabilities.
   • Full charge/discharge cycle testing with programmable cut-off conditions.

4. Data Acquisition and Control

   • Sampling frequency of 10Hz for real-time monitoring.
   • Supports dynamic parameter adjustment during testing.
   • USB and Ethernet interfaces for seamless data transfer and system control.

5. High Efficiency and Safety

   • Built-in over-current, over-voltage, and short-circuit protection.
   • Automatic stop feature for improved safety and battery protection.

6. Software Support

   • Equipped with Neware’s BTS (Battery Testing System) software for detailed parameter configuration, monitoring, and analysis.
   • Data export in multiple formats for post-test evaluation.

7. Durability and Flexibility

   • Compact modular design, suitable for both small-scale labs and large-scale production lines.
   • Operating temperature range: 0°C to 40°C.
   • Energy-efficient operation for prolonged usage.

Applications:

• Research and development of cylindrical batteries, including Li-ion, NiMH, and others.
• Quality control in battery manufacturing processes.
• Academic experiments and industrial validation.

The Neware CT-4008Q-5V12A-S1 combines precision, versatility, and safety, making it a reliable choice for professionals in the battery industry seeking to optimize testing workflows and improve battery performance.
Email: tanya.z.neware@gmail.com. Customization is supported, please feel free to contact me for more models.

Payment Terms︰ T/T

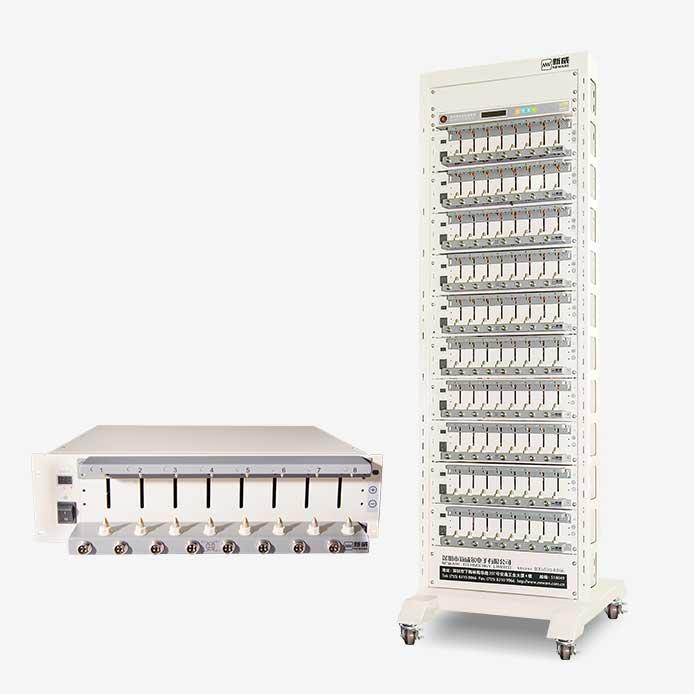

Product Image
